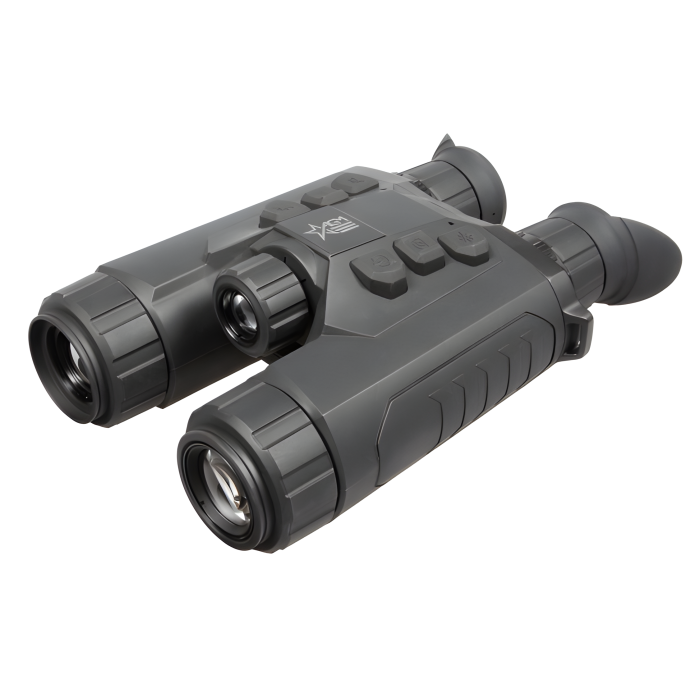

AGM ObservIR LRF 35-640 Thermal Imaging/Night Vision Fusion Camera with Laser Rangefinder

The AGM ObservIR LRF 35-640 Thermal Imaging/Night Vision Fusion Camera with Laser Rangefinder combines advanced thermal imaging with a high-performance optical sensor, giving you crystal-clear vision both day and night. With a powerful 35 mm thermal lens and a 60 mm optical lens, you get incredible magnification and detail – even in the toughest conditions. Featuring a thermal resolution of 640 × 512 and an optical resolution of 3840 × 2160, this camera delivers image quality you can trust in any situation.

Main features of the AGM ObservIR LRF 35-640

• Thermal precision: 12µm VOx detector with less than 15 mK NETD for maximum sensitivity.
• Impressive range: Detection up to 1,800 m and a laser rangefinder up to 1,000 m with ±1 m accuracy.
• Fusion technology: Combines thermal and optical imaging for perfect recognition in every condition.
• Generous storage: Built-in 64 GB eMMC memory for photo, video, and audio recordings.
• Rugged and reliable: IP67-rated, operates from -20 °C to +55 °C, and runs up to 8 hours on a single charge.

The thermal channel provides 3.0x to 22x magnification with a field of view of 12.5° × 10.1°, while the optical channel offers 5.5x to 22x magnification and a field of view of 6.9° × 4.1°. This combination gives you flexibility for both wide-area scanning and detailed inspection. Scene modes such as Jungle and Recognition let you quickly adapt the display to your environment.

The 1920 × 1080 OLED display with 50 FPS ensures smooth, vivid images. Flat field correction (automatic, manual, or external) keeps performance at its peak. Multiple color palettes – Black Hot, White Hot, Red Hot, and Fusion – let you choose the best view for any situation. The Spot Tracking feature automatically locks onto the hottest point, making your observations faster and more efficient.

The built-in laser rangefinder measures distances up to 1,000 m using a safe Class 1 laser (905 nm), providing accuracy you can rely on. For total darkness, the device includes an integrated 850 nm Smart IR illuminator with adjustable intensity and beam angle, giving you a viewing distance of up to 400 meters. Features like Wi-Fi hotspot, sleep mode, and USB Type-C power make operation simple and convenient.

With an interpupillary adjustment from 60 to 74 mm and a diopter adjustment from -5 to +3 dpt, you can easily fine-tune the view to your eyes. Despite its advanced technology, the camera remains comfortable and portable, measuring 221 × 142 × 71 mm and weighing only 0.91 kg (without batteries) – ideal for extended observation sessions.

Power is supplied by two removable 18650 rechargeable batteries, providing up to 8 hours of continuous use. With its IP67 rating, the ObservIR is fully dust- and waterproof, built to perform in even the harshest conditions.

Everything you need is included in the box: two 18650 rechargeable batteries, a USB Type-C cable, and a carrying case for safe transport and storage. Unpack it, power it on, and you’re ready to go – the AGM ObservIR LRF 35-640 is your reliable companion for every adventure, day or night!
