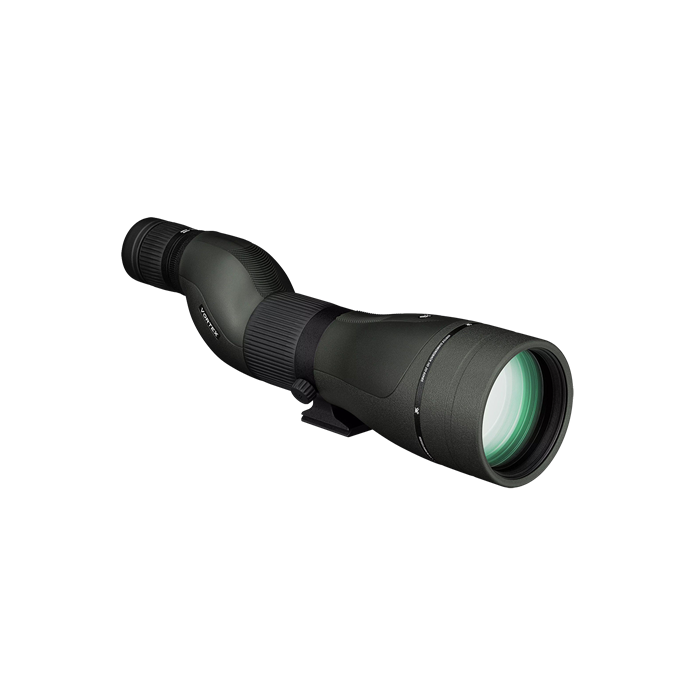

Vortex Diamondback HD 20-60x85 Spotting Scope Straight
Description
The Vortex Diamondback HD 20-60x85 Spotting Scope Straight is a masterpiece in the world of spotting scopes. Featuring an 85mm objective lens combined with advanced HD optics, this scope delivers unmatched clarity. It’s perfect for spotting movement in low light and uncovering hidden details in dense foliage. This model is specially designed for long-range hunters who want top performance even at dusk. The refreshed, sleek design offers snag-free contours, and the focus wheel is neatly integrated into the body. Don’t miss a single detail.
Key Features of the Vortex Diamondback HD 20-60x85
- HD Optical System: Provides exceptional resolution and true-to-life color.
- Waterproof O-ring Seals: Protect against moisture, dust, and dirt.
- Fogproof Design with Argon Gas Filling: Prevents internal fogging.
With the Diamondback HD 20-60x85, you get a state-of-the-art viewpoint designed for the demanding hunting spotter. The large objective diameter and optimized zoom offer the perfect balance of quality, size, and portability. Vortex has enhanced ease of use with an ergonomic 360° focus wheel, letting you quickly and precisely adjust your field of view. The integrated sunshade shields you from unwanted glare and weather, so nothing spoils your moment.

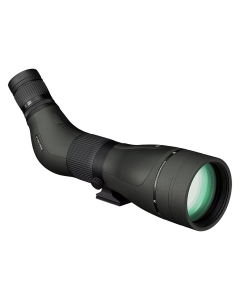

Whether you're a beginner or an experienced spotter, this spotting scope comes in versions that match any style. The straight model is ideal for spotters who want to stay hidden while lying down or kneeling, while there’s also a 45° angled view version perfect for standing observation on a tripod. Whichever you choose, it’s designed to maximize your viewing experience.
The lenses of this scope deliver a sharp, clear view thanks to advanced coatings regardless of conditions. Fully multi-coated optics increase light transmission, which is ideal for low-light situations. Plus, the Armor Tek® coating adds extra protection against scratches, dirt, and oil, so you’re always ready for your next adventure.
The Diamondback HD’s housing offers a rugged build that’s shock-resistant and features a rubber armor for a reliable grip. Whether you're in the desert or facing rain, this spotting scope performs effortlessly under all conditions. With accessories like an adjustable eyecup, a rotating tripod mount ring, and Arca-Swiss compatibility, you enjoy versatile support during use. The built-in sunshield reduces glare and adds extra protection against rain and snow.
With Vortex, you get the purest guarantee: an unlimited lifetime VIP warranty representing their ‘Very Important Promise’. This means if your product is defective, it will be repaired or replaced with a like-new alternative. This coverage lasts for the product’s lifetime but does not cover loss or damage that does not affect performance.
When you purchase the Diamondback HD 20-60x85, you receive a complete accessory kit. This set includes a 20-60x zoom eyepiece, eyepiece and objective lens caps, two protective caps, a handy neoprene case with removable parts, a lens cleaning cloth, and an English manual. You have everything you need to get started right away and make your first experience impressive.
Delivery:
- 1x Diamondback HD 20-60x85 Straight
- 1x 20-60x zoom eyepiece
- 1x Eyepiece cap
- 1x Objective cap
- 2x protective caps
- 1x Neoprene cover with removable parts
- 1x Lens cleaning cloth
- 1x Manual (English)
More Information
| Article number | 42120804 |
|---|---|
| EAN | 843829112918 |
| Brand | Vortex |
| Objective diameter | 85.00 mm |
| Warranty | 99 year |
| Field of view at 1000m | 32.9 m (20x) ~ 18.3 m (60x) |
| Glass material | BaK-4 (barium crown glass) |
| Light intensity | 18.1 (20x) ~ 2.0 (60x) |
| Lens material | APO/HD |
| Maximum magnification | 60.0000 |
| Minimum magnification | 20.0000 |
| Twilight number | 41.2 (20x) ~ 71.4 m (60x) |
| Sharp from | 7.5 m |
| Special Features | Spotting Scopes | Coarse and fine focusing, Waterproof (nitrogen-filled), Suitable for spectacle wearers |
| Exit pupil | 4.25 (20x) ~ 1.41 mm (60x) |
